Main use

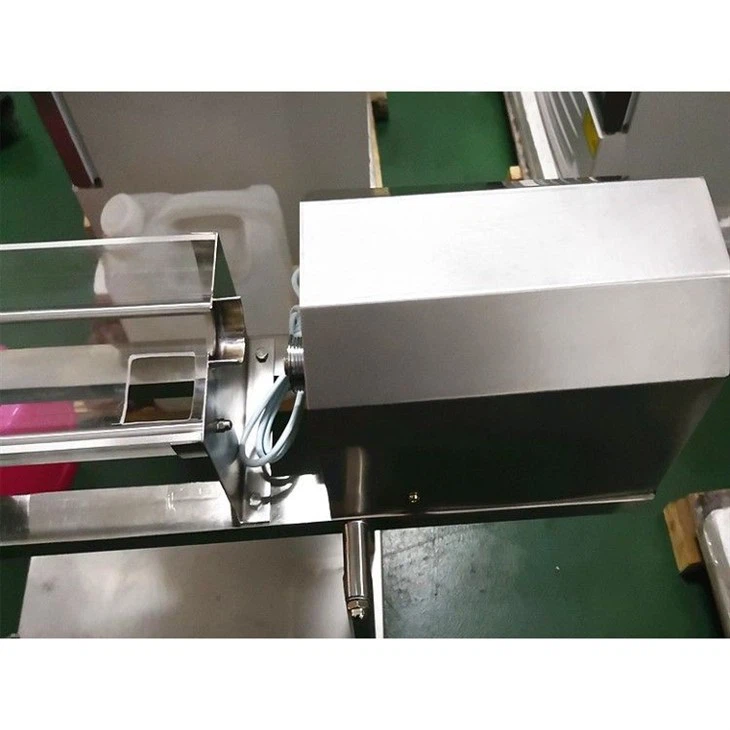

KD-88 capsule polishing machine (drug polishing machine) from the base, out
Feed port, frame, single phase motor, polishing brush, stainless steel cover,
Net bag, hopper, vacuum cleaner and other parts. Polishing brush
The motor is directly driven, and the drug can be polished according to the speed
After feeding the hopper, as the brush turns, it is fed along the bag to the outlet
The powder brushed down will be continuously collected into the vacuum cleaner
Inside, the frame can be adjusted with the help of support rods and locking handles.
Structural characteristics
The polishing and conveying process of the machine is closed structure, and the parts in contact with the drug are made of stainless steel corrosion-resistant materials, and easy to disassemble and clean, in line with the requirements of the pharmaceutical manufacturing Management Practice (GMP) implementation guide for pharmaceutical equipment. The non-adjustable speed type runs at a fixed speed (the other is adjustable speed type, which is controlled by a microcomputer and implemented stepless speed regulation, which can meet the requirements of different drug polishing speeds such as capsules, sugar-coated tablets and plain tablets, and the spindle tilt Angle can be adjusted arbitrarily within a certain radius to meet the requirements of different drugs for the length of polishing time). The machine base is equipped with moving casters to move the machine to different working locations.
Technical parameter
Power Supply: 220V 50Hz 200W
Productivity: 3000-7000 tablets/min
Shell removal rate: ≥99%
Speed range: 100-1500 RPM
Dimensions: 1300×300×1120mm
Weight: 50Kg
watch the video of kd-88 capsule polishing machine
The KD-88 Capsule Polishing Machine is specially designed for polishing capsules in pharmaceutical production.
With a closed polishing structure and integrated dust collection system, it ensures high efficiency, cleanliness, and compliance with GMP standards.
